Image analysis technology for liquid applications: particles counting, particles size and shape characterisation. Liquid flow generated by a membrane pump.

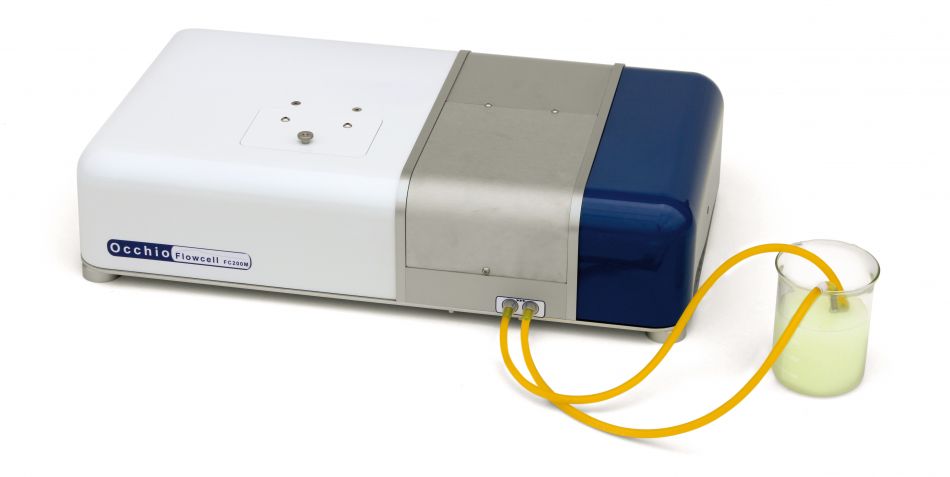

Specially developed for liquid applications when sample volume exceeds 30ml. It is an extremely flexible instrument, delivered with an external stainless steel beaker which includes overhead stirring (standard configuration). For particular applications it could also be directly connected to a glass beaker or inside a polymerisation or crystallization reactor. Sample flow is generated by an integrated membrane pump. The operating procedure includes information on sample quantity, volume sampling and numbers of analysed particles. As in all the Occhio wet dispersion instruments, the flowcell core is supplied with different spacer thicknesses. The choice of an appropriate spacer delivers you sharper image and reduces sample dilution, which improves reliability of the measurement.
Data and images of every single particle are stored in an Occhio binary database. The instrument is driven by Callisto software, which controls the entire analysis: SOP, statistic, reporting and data storage.
| Particle size range | From 0.8µm to 1000µm |
| Cell thickness | Variables thickness |
| Sample flowing | Membrane pump |
Brochure and technical data FC200M-DTS-2016
