Image analysis technology for dry applications: particles size and shape characterisation. Integrated vacuum dispersion device.
ISO Standards and Quality Assurance:
Occhio is an ISO 9001:2015 certified company. This instument and its software respectivley have been ISO 13322-1 and ISO 9276-6 certified.

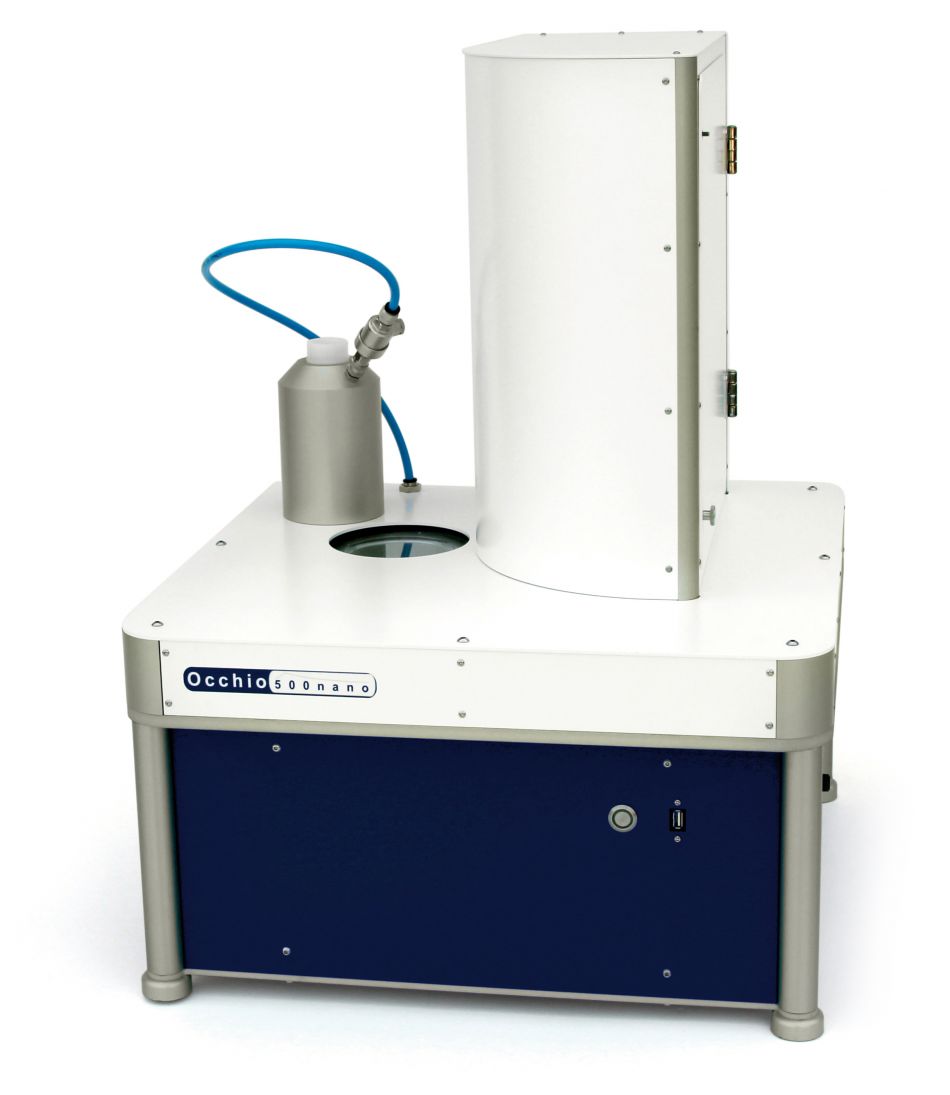

Compact instrument with computer and particle dispersion device integrated. Sample is dispersed on a round glass plate and analysed directly after dispersion. 500nano offers two scan modes:
• glass plate diameter analysis, border to border, with continuous autofocusing control, fast and precise analysis
• Point to point mapping, user can set a defined number of images on the glass plate according to the selected lens magnification
500nano also includes automatic calibration procedure, with integrated calibration slide, autofocus, and telecentric zoom lens with five magnification positions.
Image resolution is one of the key aspects of image analysis based instruments. The 500 Nano comes equiped with an ultra high resolution sensor. This sensor offers you sharper imaging with only minor optical calibration.
Data and images of every single particle are stored in an Occhio binary database. The instrument is driven by Callisto software, which controls the entire analysis: ‘SOP’, statistic, reporting and data storages.
| Particle size range | 0.4µm to 2000µm (0.2 to 2000µm HR option) |
| Sample dispersion | Integrated vacuum dispersion device |
| Glass plate diameter | 96 mm |
| Option | High resolution camera (HR option) |
Brochure and technical data 500nano-DTS-2016
