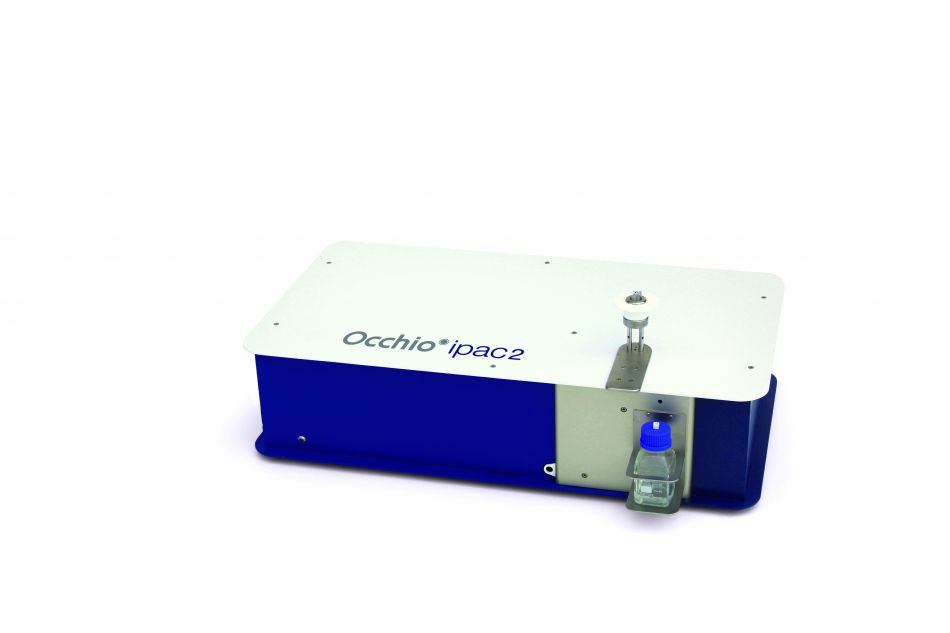

Ipac 2 CMP
Image analysis technology for CMP slurries applications: particle counting, particle size and shape characterisation. Liquid flow controlled by a precision syringe pump.
One of the important points for quality control in a CMP (Chemical Mechanical Polishing) slurry is the detection of coarse particles and aggregates that exceed the critical size for the planarization process. The Ipac 2 CMP is specially configured to detect and count these particles. This configuration allows for reduction in sample dilution and an increase in measurement reliability. The goal is to detect and count the small amount of coarse particles. Compared to FC200S+HR, this instrument uses the same HR sensor but in combination with a dedicated optical bench that increase the resolving power for slurry, suspension applications.
Occhio Ipac 2 CMP is fully computer controlled instrument. Sample flow is obtained by the use of a precision syringe pump integrated within the instrument. As with all the Occhio wet dispersion instruments, the flow cell core is supplied with different spacer thicknesses. Occhio ipac 2 CMP is able to detect submicron particles and deliver you unrivalled image quality.
Data and images of every single particle are stored in an Occhio binary database. The instrument is driven by Callisto software, which controls the entire analysis: ‘SOP’, statistic, reporting and data storages.
| Particle Size Range | From 0.2µm to 500µm |
| Sample Flow Control | Precision Syringe |
| Cell Thickness | Variable thickness |
