Image analysis technology for liquid applications: particles counting, particles size and shape characterisation with integrated heating cell and beaker for high temperature applications. Liquid flow controlled by a precision syringe pump.
Specially developed for liquid applications when the sample must be heated from ambient temperature up to 150°C. The instrument is equipped with a special stainless steel beaker where sample or solvent could be preheated before the analysis, the temperature can be easily set in an integrated PLC and maintained constant during the entire analysis. Two separate control loops assure constant temperature conditions in the beaker and in the cell. Temperature is measured by using the PT100 probe directly submerged in the sample.

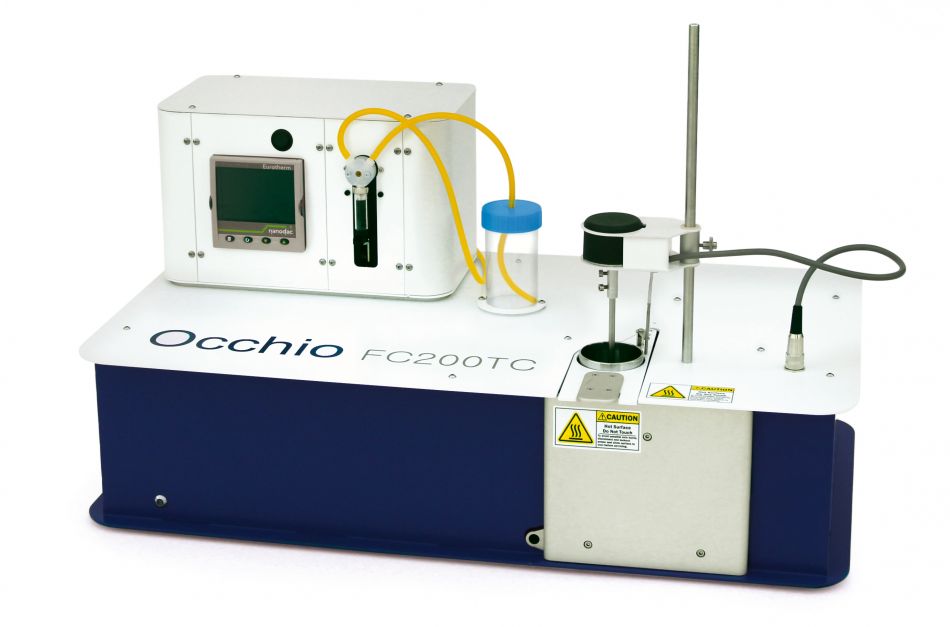

Occhio FC200TC is fully computer controlled instrument. Sample flow is obtained through precision syringe pump integrated with the instrument. As all the Occhio wet dispersion instruments the flow cell core is supplied with different spacer thicknesses. The choice of an appropriate spacer, for a particular application, reduces the sample dilution and improves the reliability of the measurement. Occhio FC200TC is able to detect submicron particles and deliver you an unrivalled images quality.
Image resolution is one of the key aspects of image analysis based instruments. Our HR option comes with an ultra high resolution sensor. This sensor offers you sharper imaging with only minor optical calibration.
Data and images of every single particle are stored in an Occhio binary database. The instrument is driven by Callisto 3D software, which controls the entire analysis: ‘SOP’, statistic, reporting and data storages.
| Particle size range | From 0.2µm to 1000µm |
| Sample flowing | Precision syringe |
| Cell thickness | Variables thickness |
| Heating temperature | Ambient to 150°C |
| Option | External membrane pump module |
Brochure and technical data FC200TC-DTS-2016
