Image analysis technology for dry and liquid applications: particles size, shape and colour characterisation. Integrated vacuum dispersion device.
ISO Standards and Quality Assurance:
Occhio is an ISO 9001:2015 certified company. This instument and its software respectivley have been ISO 13322-1 and ISO 9276-6 certified.

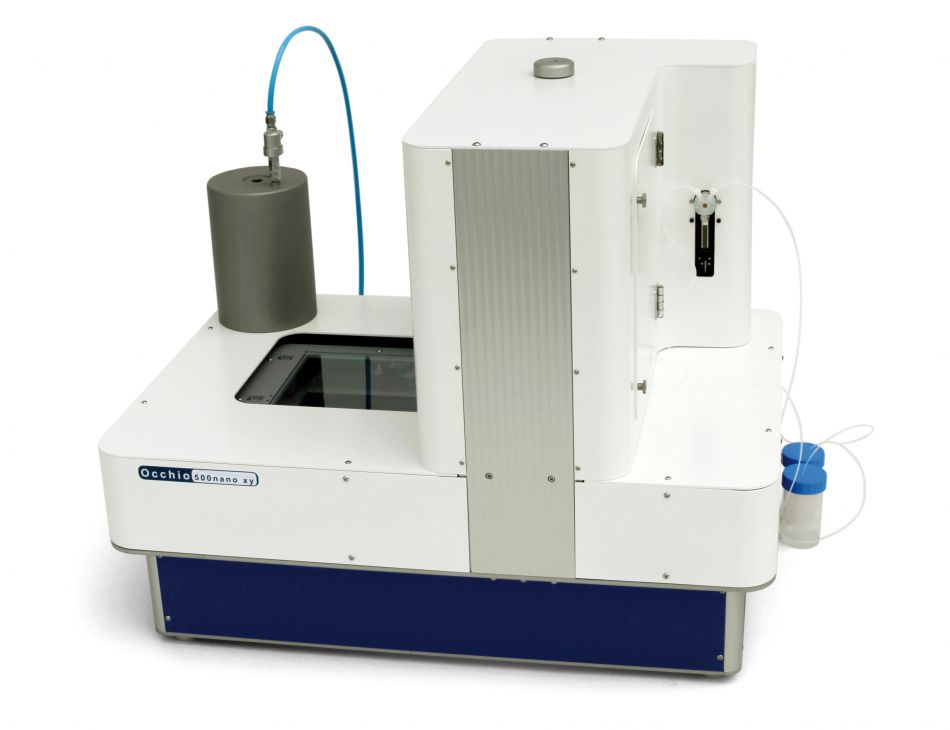

Instrument overview:
The complete solution from dry to liquid dispersed samples, including monochrome or color analysis
For dry samples, a specially designed vacuum device disperses particles directly on the glass plate. After dispersion, the instrument checks the calibration value by an integrated reference reticule and starts the analysis by capturing the images on the glass plate.
For liquid suspensions or emulsion, particles pass through an integrated flow cell and images are captured during flowing. Liquid flow is controlled by an internal syringe.
The Standard Operating Procedure includes the full control of each method starting from sample dispersion to final report printing as well for both the dry and liquid applications
This instrument has ISO 13322-1 certification.
Data and images of every single particle are stored in an Occhio binary database. Callisto 3D is the newest software version developed by our engineers. A new graphic interface, expressly settled to integrate the innovative three-dimensional characterization of particles, offers a wide range of data presentations
This Software is ISO 9276-6 Approved and Certified
| Particle size range (dry mode) | 0.2 µm to 300µm |
| Particle size range (wet mode) | 0.8 µm to 300µm |
| Back light | Integrated with the base |
| Reflected light | Integrated up on the lens |
| Dry sample dispersion | Integrated vacuum dispersion device |
| Sample flowing (wet mode) | Integrated syringe |
| Glass plate dimensions | 200 x 200 mm |
Brochure and technical data 500nanoXY-DTS-20
