Image analysis technology for liquid applications: particles counting, particles size and shape characterisation. Liquid flow controlled by a precision syringe pump.

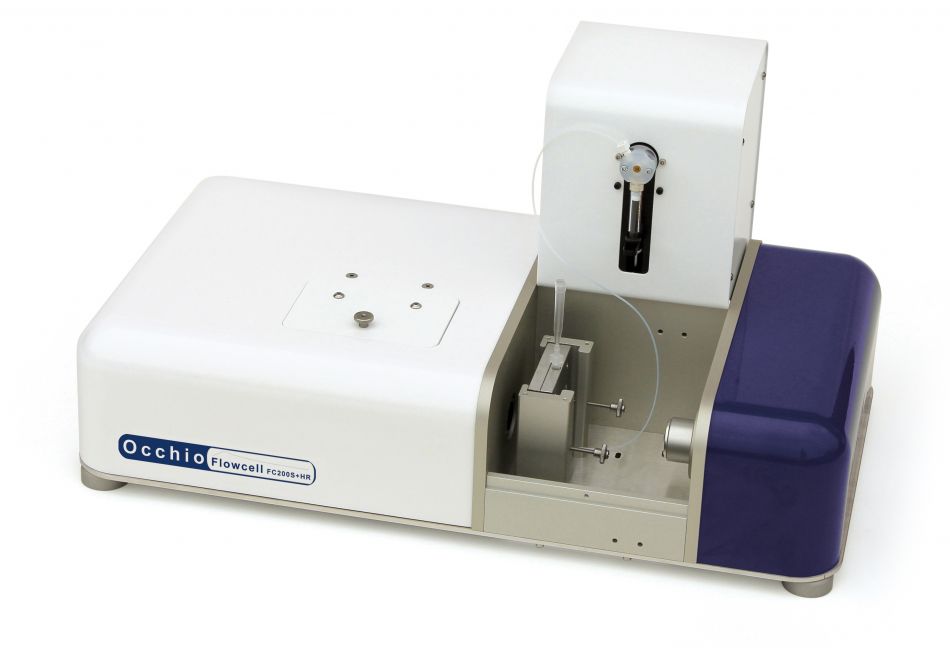

Specially developed for liquid applications requiring a small sample quantity, 50µl, the Occhio FC200S+ is fully computer controlled instrument. Sample flow is obtained through precision syringe pump integrated with the instrument. As with all the Occhio wet dispersion instruments, the flowcell core is supplied with different spacer thicknesses. The choice of an appropriate spacer reduces the sample dilution and improves the reliability of the measurement. By choosing lower resolution, 400nm, Occhio FC200S+ is able to detect submicron particles and deliver you an unrivalled image quality.
Image resolution is one of the key aspects of image analysis based instruments. Our HR option comes with an ultra high resolution sensor. This sensor offers you sharper imaging with only minor optical calibration.
Data and images of every single particle are stored in an Occhio binary database. The instrument is driven by Callisto software, which controls the entire analysis: ‘SOP’, statistic, reporting and data storages.
| Particle size range | From 0.2µm to 1000µm |
| Sample flowing | Precision syringe |
| Cell thickness | Variables thickness |
| Option | External membrane pump module |
Brochure and technical data FC200S+HR-DTS-2016
